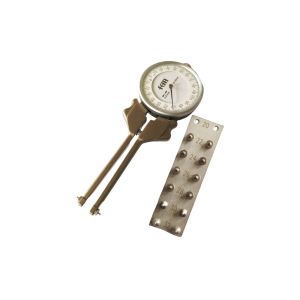

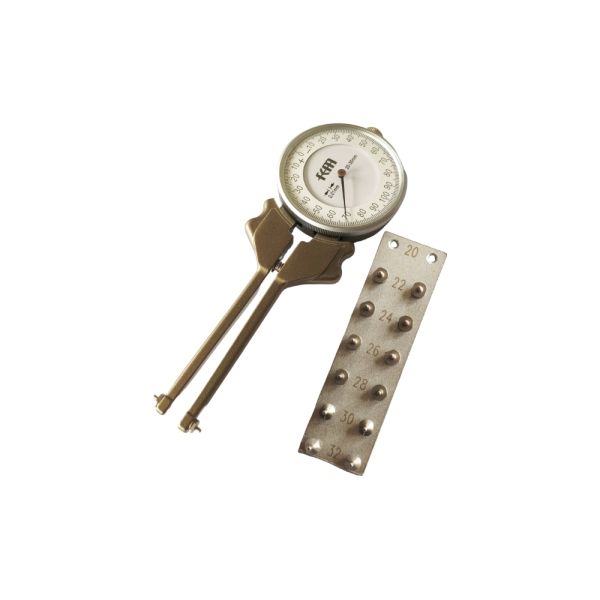

20-35mm Interchangeable Anvils Inside Dial Caliper Gauge for Measuring Holes and Grooves
Description:
Inside dial caliper gauge is used to measure the dimensions of internal holes and grooves in workpieces.
It comes with interchangeable anvils, allowing precise dimension setting according to the size of the inner diameter.
Quick Detail:
1. Clear dial reading.
2. Used for measuring inside diameter, ring groove bottom diameter and inside step diameter or holes of the workpieces.
3. With interchangeable anvils for precise measurement of different size of workpieces.
4. Supplied in fitted case.
Specification:
|
Order No.
|
Range
|
Graduation
|
Accuracy
|
Measuring Depth
|
Interchangeable Anvils
|
|
KM-430Y-35
|
20-35mm
|
0.01mm
|
≤0.02mm
|
70mm
|
7
|
|
KM-403Y-62
|
30-62mm
|
0.01mm
|
≤0.02mm
|
75mm
|
5
|
|
KM-430Y-153
|
55-153mm
|
0.01mm
|
≤0.02mm
|
90mm
|
6
|
Applications:
Digital inside caliper gauges are suitable for the measurement of inside dimensions in various industries,
such as mechanical manufacturing, metal manufacturing, automobile manufacturing, aerospace and so on.
Precautions:
1. Do not subject the gauge to blows or knocks.
2. Do not drop the gauge or apply excessive force to the gauge.
3. Do not disassemble the gauge.
4. Do not press the button with a pointed object.
5. Do not use or store the gauge under direct sunlight or in an excessively hot or cold environment.
6. Do not subject the gauge in strong magnetic fields and high voltage environment.
7. Use soft cloth or cotton cleaning the gauge. Do not use any organic solvent.
8. Remove the battery if the gauge not use for a long time.
FAQ:
1) Who are we?
Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools
in China mainland.
2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge, blocks, level, etc.
3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.
4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
5) Do we accept customization?
Yes, OEM is available.
6) How about after-sales service?
One year warranty for all kinds of products.
If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.
As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
